EIKON J&M RADIO MICROFONO
EIKON J&M RADIO MICROFONO
Carica immagine in Galleria Viewer, EIKON J&M RADIO MICROFONO
Carica immagine in Galleria Viewer, EIKON J&M RADIO MICROFONO

Sku: S18839

EIKON J&M RADIO MICROFONO

EIKON
€75,00
€75,00
Vendita Venduto
/
Tasse incluse.
Testo pre -ordine
Specifiche Tecniche

EKJ&M – UHF PLL 16 Channel Transmitter

RF Channels
16 frequency presets
RF Frequency Band
UHF: 863-865 MHz
RF Frequency Stability
±0,002%
RF Oscillation Mode
Quartz locked
RF Modulation Type
Wideband FM Stereo
RF Output Power
10mW
Sub-harmonic
< 40 dB
Operating current
130 mA
Operating Time
5 to 8 hrs (depending on volume level)
Operating Power Supply
3.7 V / 500 mA - built-in Lithium battery
Charging mode
USB charging 5V – type USB mini connector
Charging time
5 hours
Weight
0.30 Kg

EKJ&M –UHF PLL 16 Channels Receiver
RF Channels
16 frequency presets
RF Frequency Band
UHF: 863-865 MHz
RF Frequency Stability
±0,005%
RF Oscillation Mode
Quartz locked
RF Modulation Type
Wideband FM Stereo
RF Receiving Sensitivity
< -98 dBm
RF Receiving range
15 to 30 meters depending on used band conditions
Audio dynamic range
106 dBm
THD Distortion
< 0.5%
S/N Ratio
> 102 dBA
Audio output connector
6.3 mm Mono Jack
Output Power Max (continuous)
400 mW
Operating current
80 mA
Operating Time
5 hours
Operating Power Supply
3.7 V / 500 mA - built-in Lithium battery
Charging mode
USB charging 5V – type USB mini connector
Charging time
3 hours
Weight
0.05 Kg

EKJ&MA – UHF PLL 50 Channel Transmitter
RF Channels
50 frequency presets
RF Frequency Band
UHF: 512 – 541,7 MHz
RF Frequency Stability
±0,002%
RF Oscillation Mode
Quartz locked
RF Modulation Type
Wideband FM Stereo
RF Output Power
10mW
Sub-harmonic
< 40 dB
Operating current
130 mA
Operating Time
5 to 8 hrs (depending on volume level)
Operating Power Supply
3.7 V / 500 mA - built-in Lithium battery
Charging mode
USB charging 5V – type USB mini connector
Charging time
5 hours
Weight
0.30 Kg

EKJ&MA –UHF PLL 50 Channels Receiver
RF Channels
50 frequency presets
RF Frequency Band
UHF: 512 – 541,7 MHz
RF Frequency Stability
±0,005%
RF Oscillation Mode
Quartz locked
RF Modulation Type
Wideband FM Stereo
RF Receiving Sensitivity
< -98 dBm
RF Receiving range
15 to 30 meters depending on used band conditions

Audio dynamic range

106 dBm
THD Distortion
< 0.5%
S/N Ratio
> 102 dBA
Audio output connector
6.3 mm Mono Jack
Output Power Max (continuous)
400 mW
Operating current
80 mA
Operating Time
5 hours
Operating Power Supply
3.7 V / 500 mA - built-in Lithium battery
Charging mode
USB charging 5V – type USB mini connector
Charging time
3 hours
Weight
0.05 Kg

EKJ&M è un sistema microfonico wireless UHF controllato al quarzo che fornisce una trasmissione del segnale affidabile e di alta qualità.

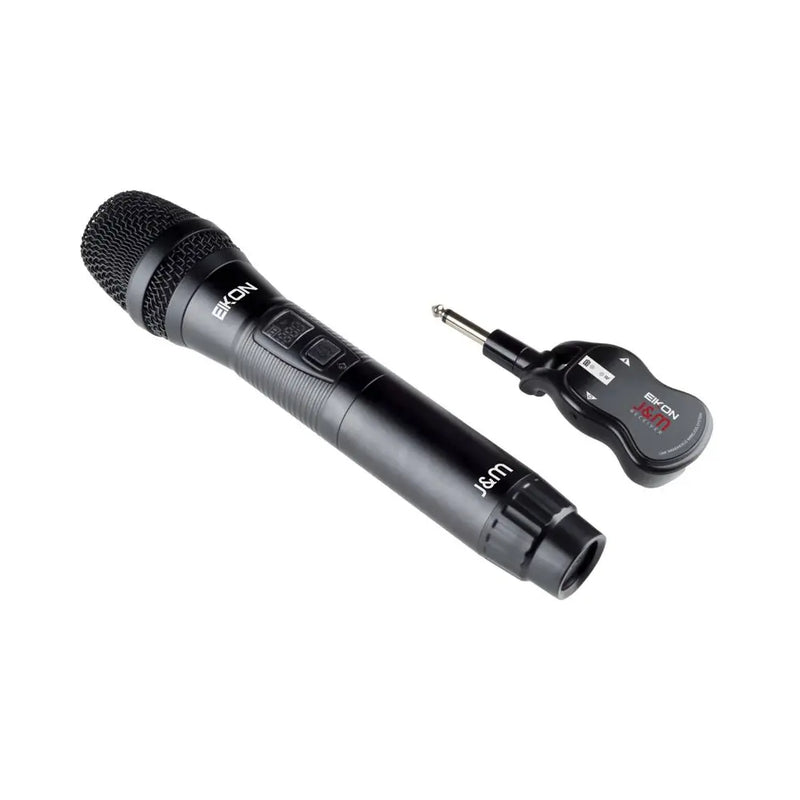

EKJ&M è dotato di 3 unità: trasmettitore portatile EKJ&M, ricevitore compatto "formato connettore" EKJ&M e cavo di ricarica da USB a USB-mini.
Sono disponibili 16 canali di frequenza (50 canali modello EKJ&MA), consentendo la possibilità di utilizzare l'apparato insieme ad altre apparecchiature wireless.
UHF 863 – 865 MHz frequency band
Up to 30 meters range
Built in 3.7V/500mA lithium battery
5V USB charging cable included
Up to 5 hours autonomy
Up to 6 systems usable in the same location
